PTSV platinum vibration-resistant reference resistance thermometers
Designed for
PTSV platinum vibration-proof reference resistance thermometers (hereafter thermometers) are designed for verification of temperature measuring instruments in accordance with State verification schedule for temperature measuring instruments (GOST 8.558-2009) and for use as a temperature measuring instrument of improved accuracy in various industries and scientific research.

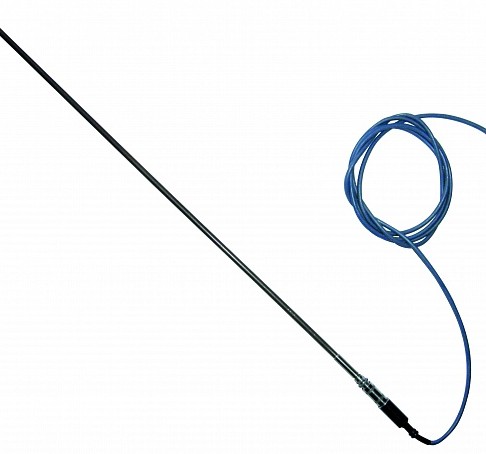

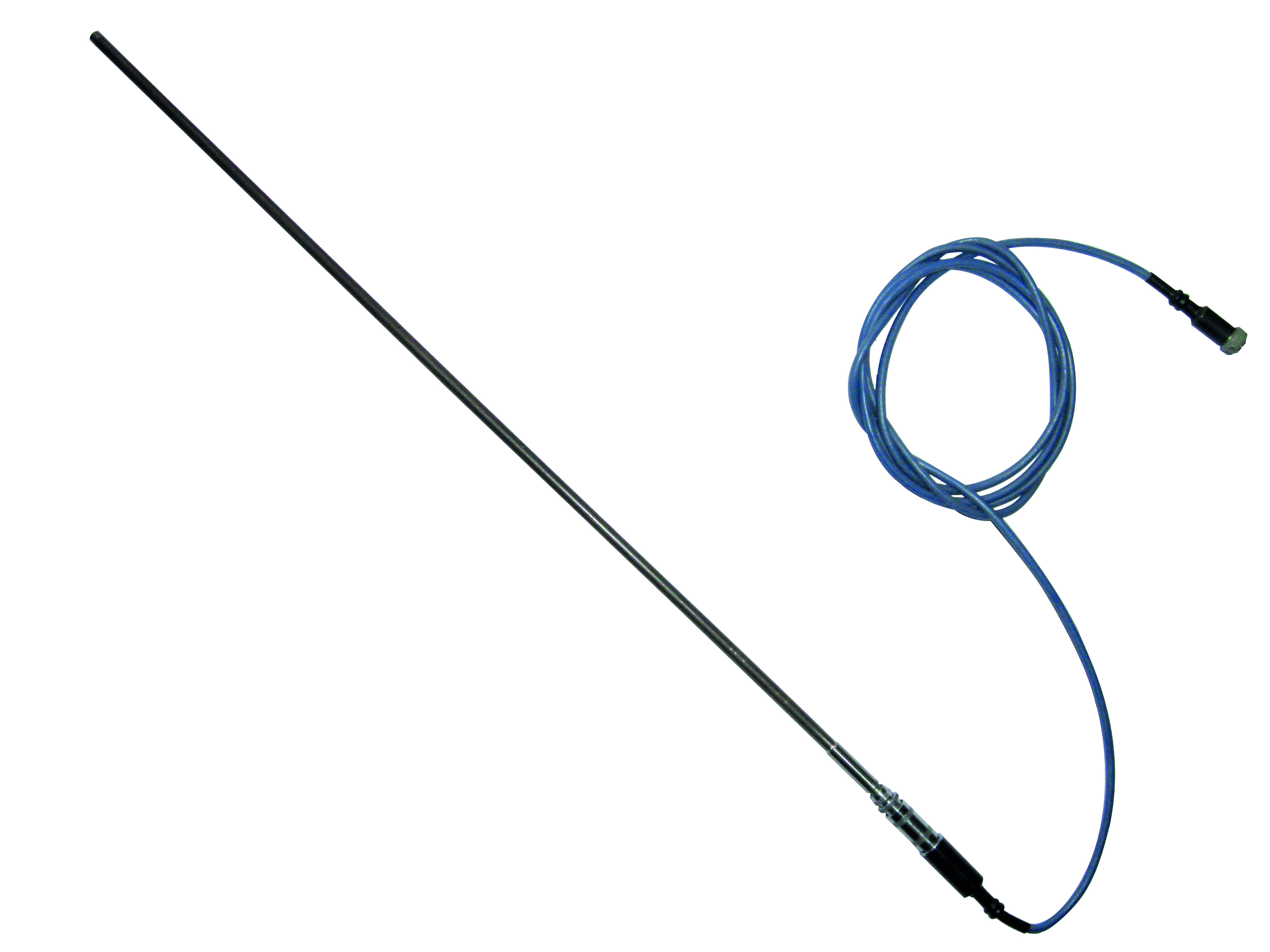

Thermometers are portable devices, composed of primary thermal transducer - a sensitive element of a platinum thermometer (CHEPT) and a protective housing.
The principle of operation of thermometers is to use the temperature dependence of platinum electrical resistance.
| Thermometer modification | Index | Total length, mm | Length of immersed part, mm | Diameter of head, mm | Diameter of immersed part, mm |
|---|---|---|---|---|---|
| PTSV -1 | MGFK.405111.001 | 595 ± 5 | 550 ± 5 | 22 ± 0,5 | 6 ± 0,2 |
| MGFK.405111.001 -01 | 575 ± 5 | 530 ± 5 | 22 ± 0,5 | 6 ± 0,2 | |
| PTSV -2 | MGFK.405111.002 | 74 ± 1 | 50 ± 1 | 6 ± 0,2 | 4± 0,2 |
| PTSV -2К | MGFK.405111.006 | От 50 до 130 (± 1) | 50 ± 1 | 6 ± 0,2 | 4± 0,2 |
| PTSV -3 | MGFK.405111.003 | 626 ± 5 | 550 ± 5 | 22 ± 0,5 | 6 ± 0,2 |
| MGFK.405111.003 -01 | 426 ± 2 | 350 ± 2 | 22 ± 0,5 | 6 ± 0,2 | |
| PTSV -4 | MGFK.405111.004 | 629 ± 5 | 550 ± 5 | 22 ± 0,5 | 6 ± 0,2 |
| PTSV -5 | MGFK.405111.005 | 629 ± 5 | 550 ± 5 | 22 ± 0,5 | 6 ± 0,2 |
| MGFK.405111.005 -01 | 426 ± 2 | 350 ± 2 | 22 ± 0,5 | 6 ± 0,2 |
PTSV platinum vibration-resistant reference resistance thermometers
| Modification and thermometer version | Category | Range of temperature measurement, ̊С | WGa, not less than | WHg, not more than | W100, not less than *) |
|---|---|---|---|---|---|
| PTSV -1-2 | 2 | Minus 50 ...450 | 1,11795 | 0,844235 | 1,3924 |
| PTSV -1-3 | 3 | Minus 50 ...450 | 1,11795 | 0,844235 | 1,3924 |
| PTSV -2-1 | 1 | Minus 200 ...100 | 1,11795 | 0,844235 | 1,3924 |
| PTV -2К-1 | 1 | Minus 60 ...60 | 1,11795 | 0,844235 | 1,3924 |
| PTSV -2-2 | 2 | Minus 200 ...200 | 1,11795 | 0,844235 | 1,3924 |
| PTSV -2К-2 | 2 | Minus 200 ...200 |
1,11795; 1,11750 |
0,844235; 0,844990 |
1,3924; 1,3908 |
| PTSV -2К-2 | 2 | Minus 60 ...60 | - | - |
1,3908; 1,385 |
| PTSV -2-3 | 3 | Minus 200 ...200 | 1,11750 | 0,844990 | 1,3908 |
| PTSV -2К-3 | 3 | Minus 200 ...200 | 1,11750 | 0,844990 | 1,3908 |
| PTSV -2К-3 | 3 | Minus 200 ...200 | - | - | 1,385 |
| PTSV -3-3 | 3 | Minus 50 ...500 | 1,11795 | 0,844235 | 1,3924 |
| PTSV -4-2 | 2 | Minus 50 ... 232 | 1,11795 | 0,844235 | 1,3924 |
| PTSV -4-3 | 3 | Minus 50 ... 232 | 1,11795 | 0,844235 | 1,3924 |
| PTSV -5-3 | 3 | Minus 50 ... 250 | 1,11750 | 0,844990 | 1,3908 |
- WGa - relative resistivity at gallium melting point
- WHg - relative resistivity at mercury triple point temperature
- W100 - relative resistivity at temperature of 100 °С
